CORMASTER® CN1 – THE LIGHTWEIGHT MATERIAL THAT REDUCES WEIGHT BY UP TO 20%.

CORMASTER® CN1 honeycombs, made from KEVLAR® N636 paper, are ideally suited for use in the aerospace industry and everywhere else where maximum performance coupled with reduced weight is a chief requirement. Excellent strength and stiffness allow use of lower density cores in the structural sandwich applications.

Product features and advantages

  • Superior compressive properties, 20% higher than NOMEX® honeycombs
  • Extremely high shear moduli, from 1.5 to 3 times increase compared to NOMEX® honeycombs with comparable density
  • Low moisture absorption
  • Excellent fatigue properties
  • High hot / wet characteristics
Datasheet SCHÜTZ CORMASTER CN1
Download PDF
Brochure SCHÜTZ CORMASTER
Download PDF

MATERIAL AND TECHNICAL DATA

CORMASTER® CN1

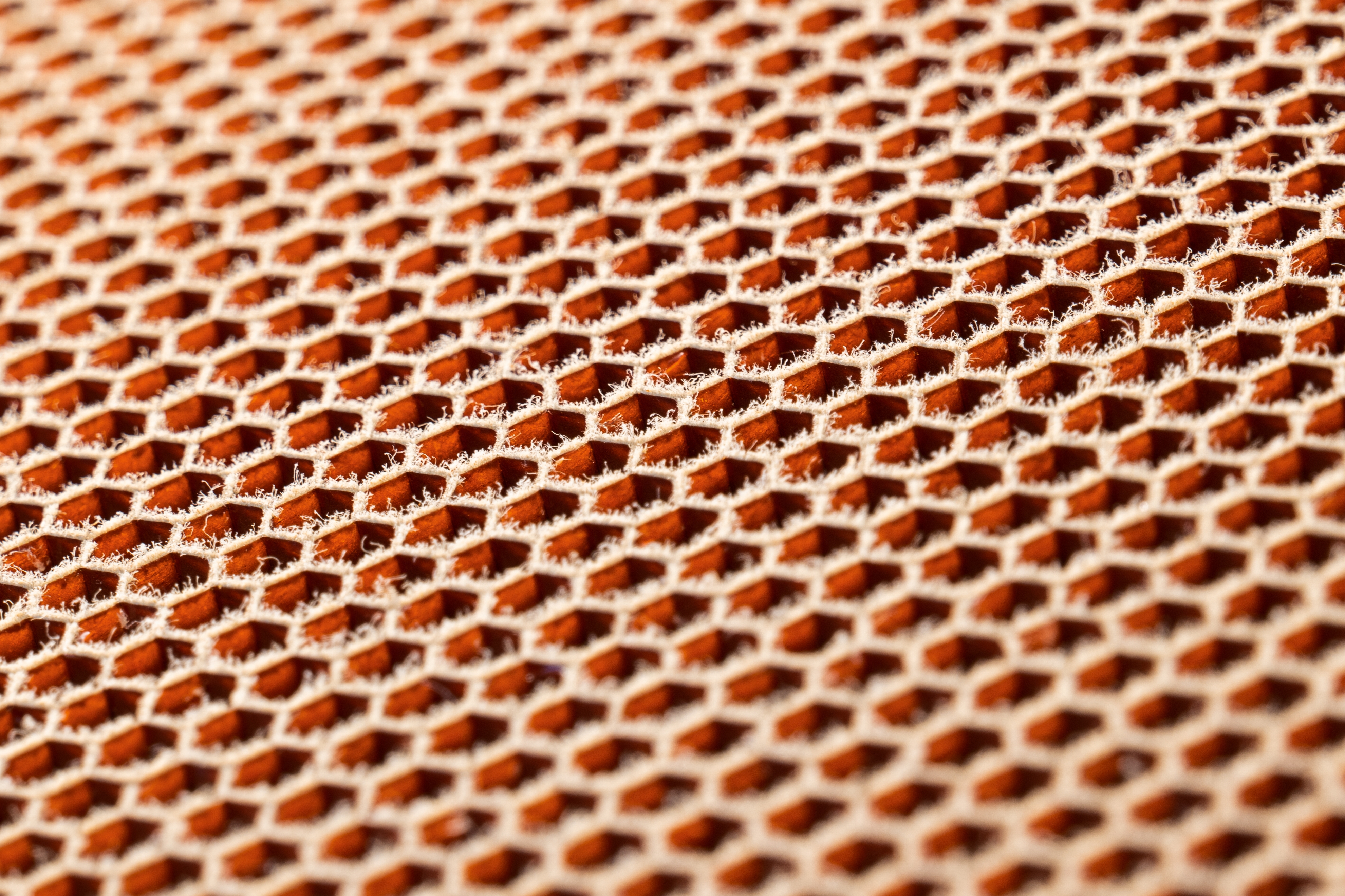

CORMASTER® CN1 are non-metallic structures made from para-aramid N636 DuPont® paper sheets, bonded together and coated with a phenolic resin. The cell size and density determine the mechanical characteristics.


Cell sizes from 3.2 to 9.6 mm (0.13 to 0.38 inches)
Density range from 24 to 144 kg/m³ (1.50 to 8.99 lb/ft3)
add to watchlist

CORMASTER® CN1 are non-metallic structures made from para-aramid N636 DuPont® paper sheets, bonded together and coated with a phenolic resin. The cell size and density determine the mechanical characteristics.


Cell sizes from 3.2 to 9.6 mm (0.13 to 0.38 inches)
Density range from 24 to 144 kg/m³ (1.50 to 8.99 lb/ft3)
add to watchlist

CORMASTER® CN1 are non-metallic structures made from para-aramid N636 DuPont® paper sheets, bonded together and coated with a phenolic resin. The cell size and density determine the mechanical characteristics.


Cell sizes from 3.2 to 9.6 mm (0.13 to 0.38 inches)
Density range from 24 to 144 kg/m³ (1.50 to 8.99 lb/ft3)
